This is a tutorial for a presentation I gave at Git-Merge 2018 before tools like Abstract, Kactus and others where more popular. These tools provide a ton of value to the design process, and I highly recommend your check them out. I do still find value in this workflow, but have not put as much focus into it. Hope it is still of use.

Overview

Until recently design files had underlying binary file systems, this made them difficult to version control or keep track of the latest updates to a file. Sketch recently shifted their file system to json which makes it really easy handle version control for design files.

In this post I'll give you a quick rundown on how you can version control your design files with a few simple bash scripts. I am assuming that you have an understanding of Git, I highly recommend this tutorial from Tania Rascia.

Getting started

The source files for this tutorial can be for here. You will find a create-json.sh and create.sketch.sh files, as you can probably guess the scripts either create a json file or a sketch file.

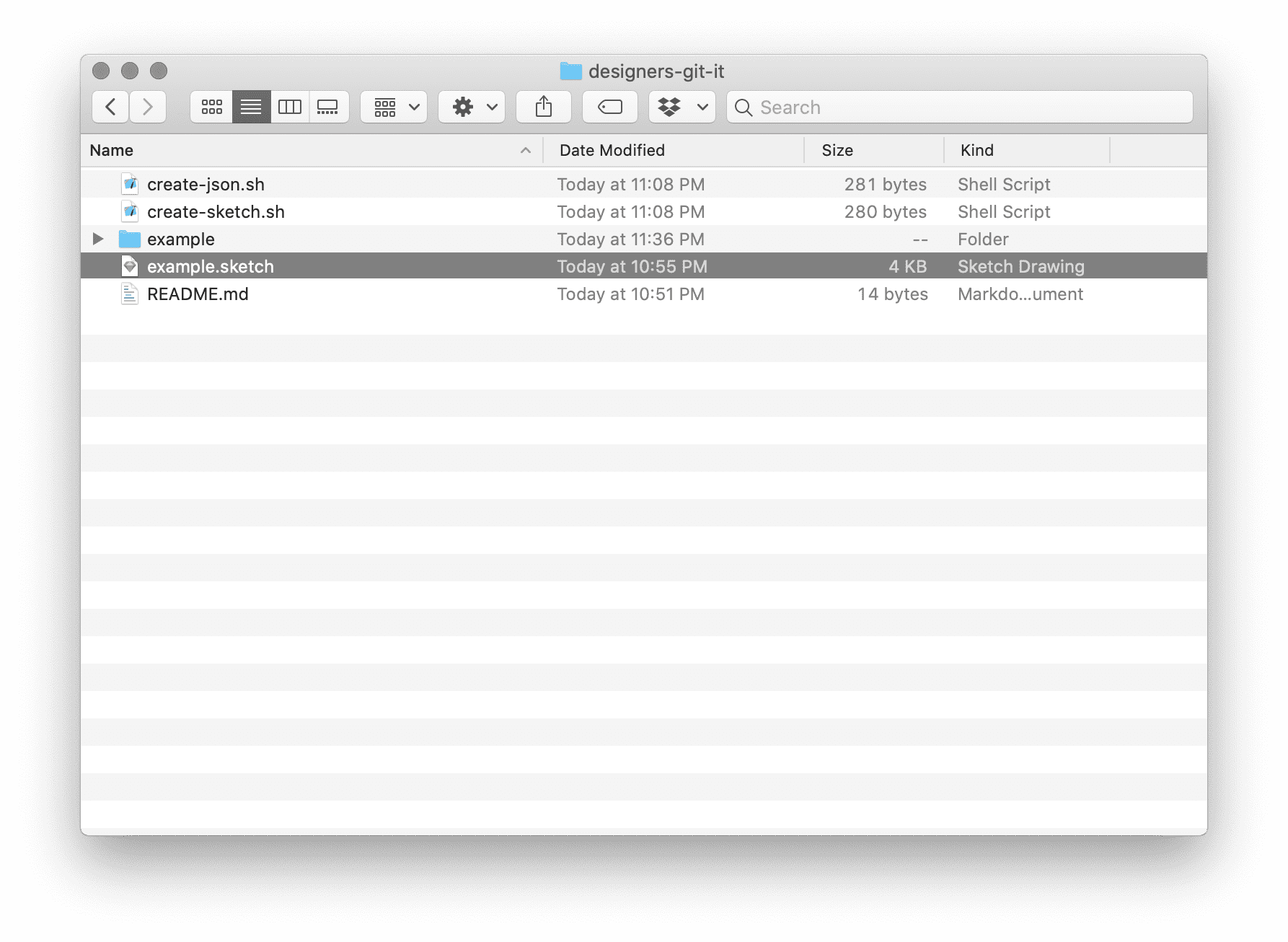

Inside of your folder save your Sketch file.

Open create-json.sh

Inside of that file add your file name to files="example"

files="example"  # add a new file like this: "example, example-1, example-2"
for f in $files
do
  # Zip core Sketch data
  cd $f/ && zip $f.zip -r .

  # Copy .zip to .sketch
  cp $f.zip ../$f.sketch

  # Remove zip hello this is a change
  rm -Rf $f.zip && cd ..
done

You will do the same thing inside of create-sketch.sh

Open create-sketch.sh

Inside of that file add your file name to files="example"

files="example" # add a new file like this: "example, example-1, example-2"
for f in $files
do
  # Copy .sketch to .zip
  cp $f.sketch $f.zip

  # Unzip the file and delete
  unzip -o $f.zip -d $f/
  rm -Rf $f.zip

  # Remove the preview file
  rm -Rf $f/previews/
done

Create json files

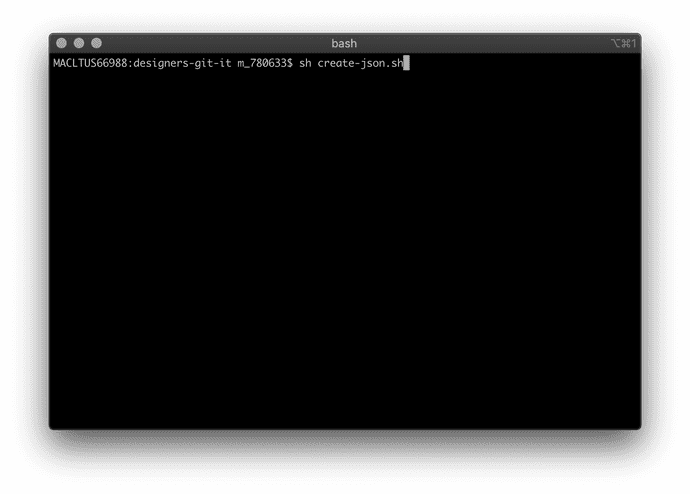

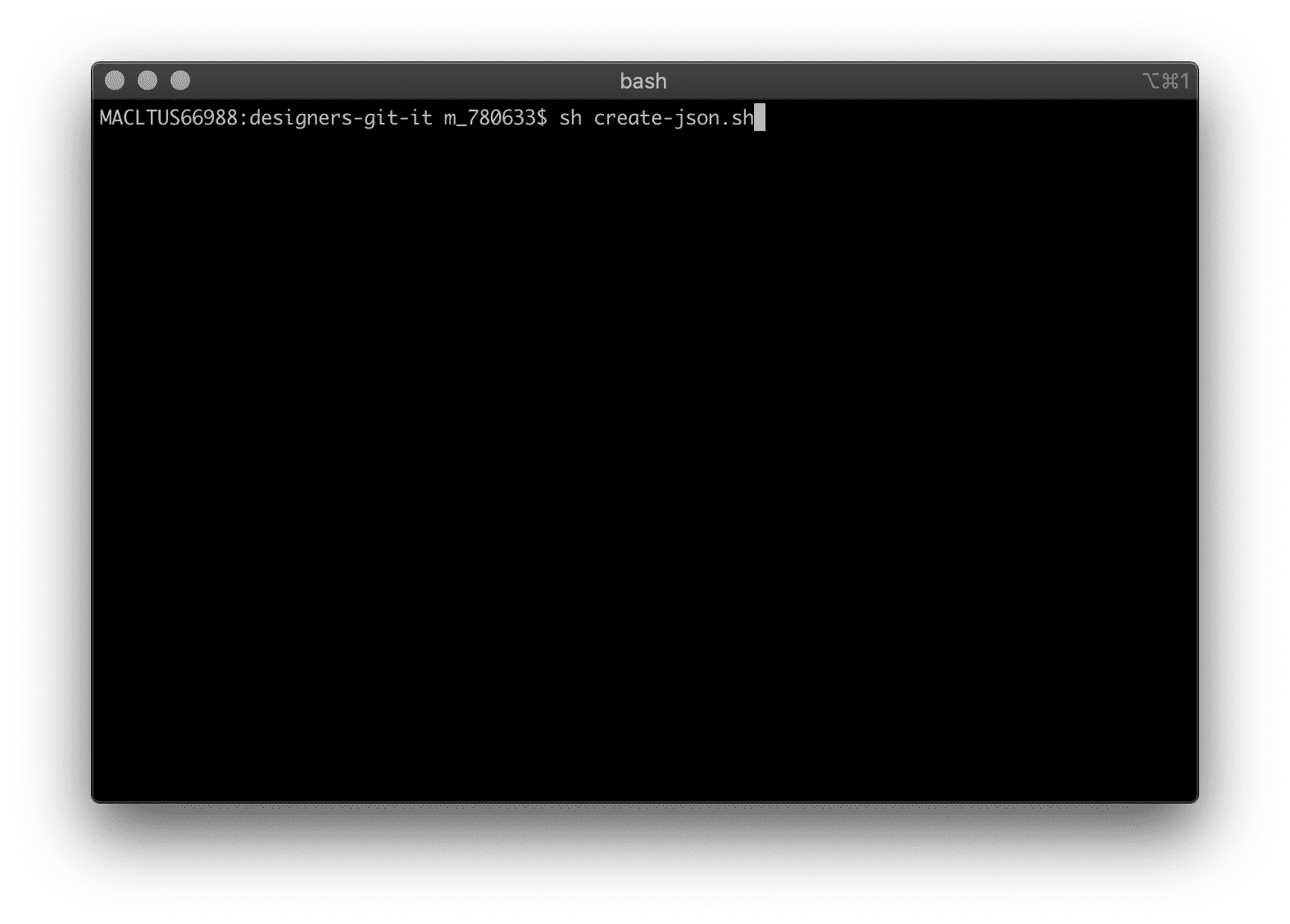

Open up your Terminal and cd the folder you saved our bash scripts and sketch file. Type in sh create-json.sh script.

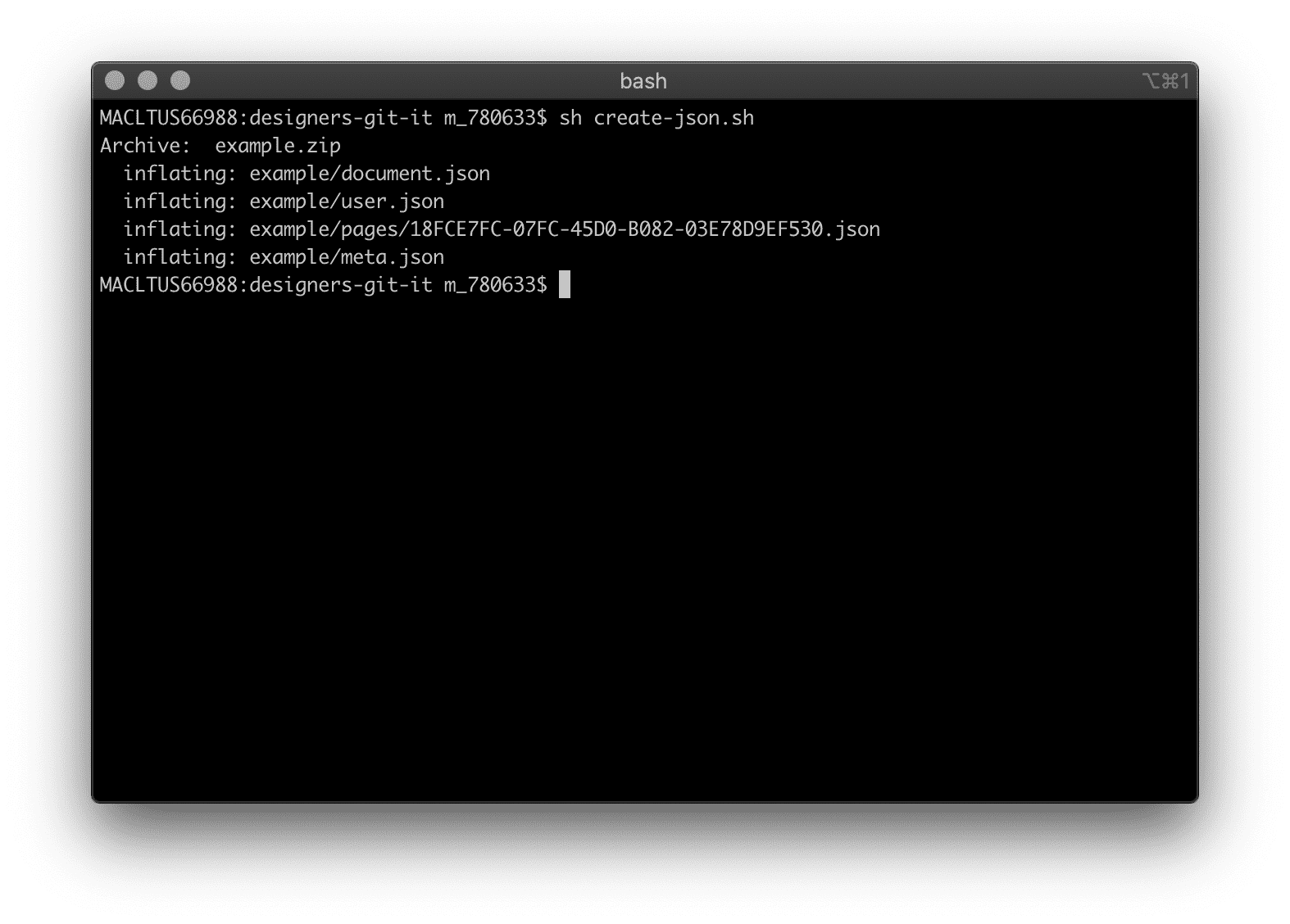

You will see that the script expands the Sketch file and creates a new folder with the same name as your Sketch file.

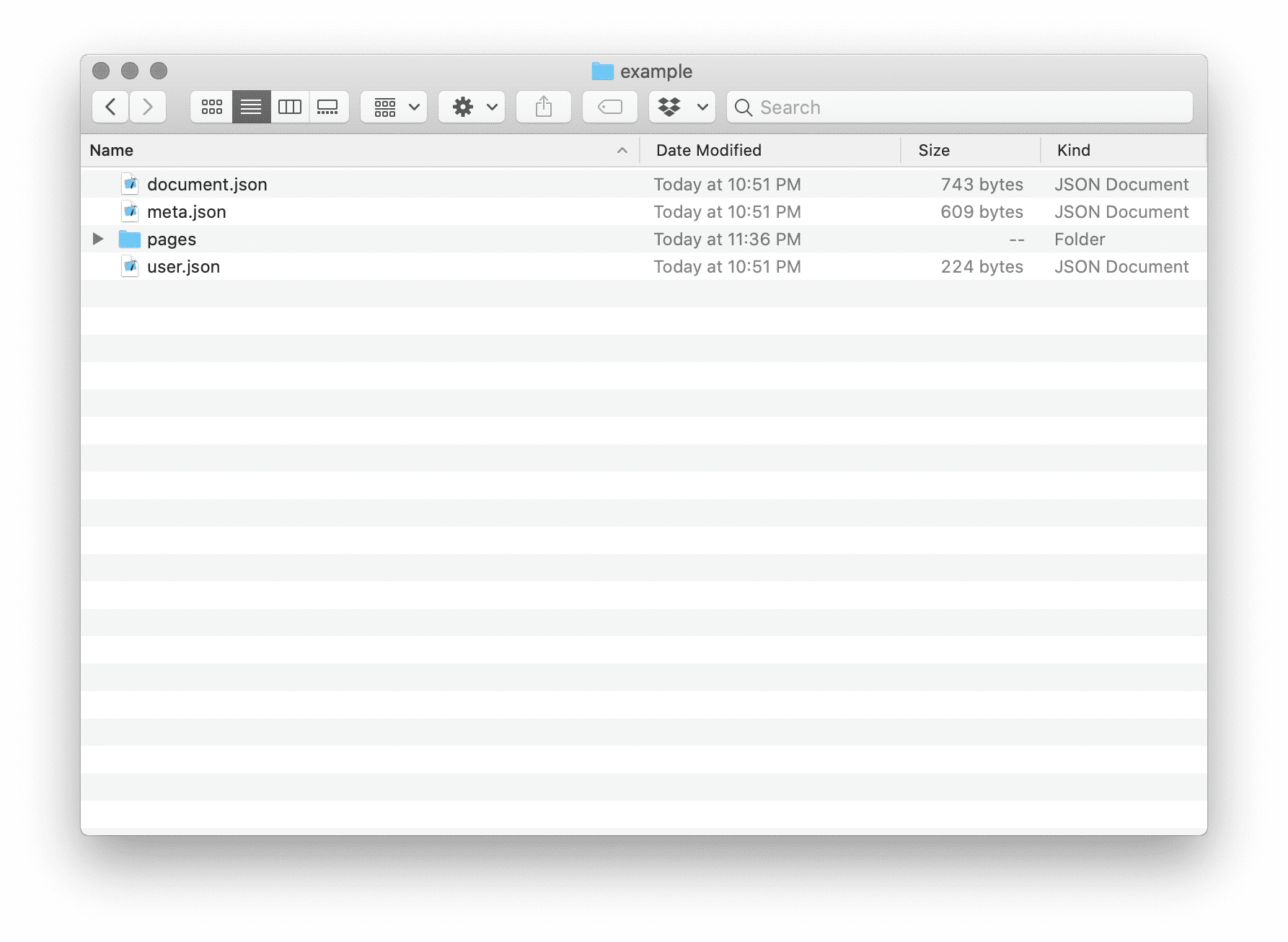

If you navigate to the Example folder you will see the json files are now exposed for you to Version Control.

Create sketch files

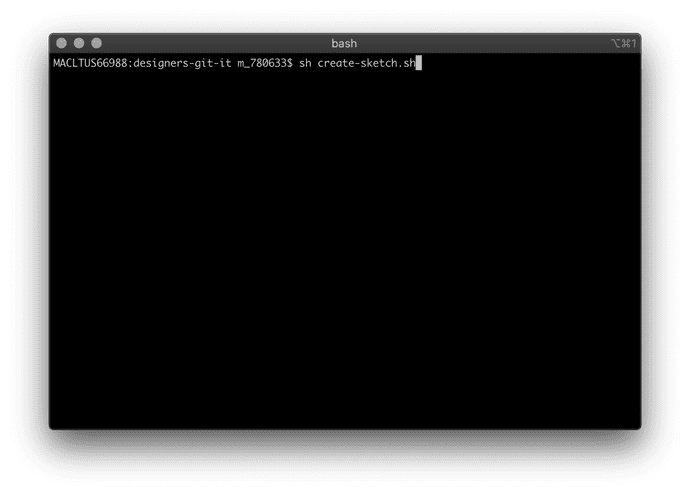

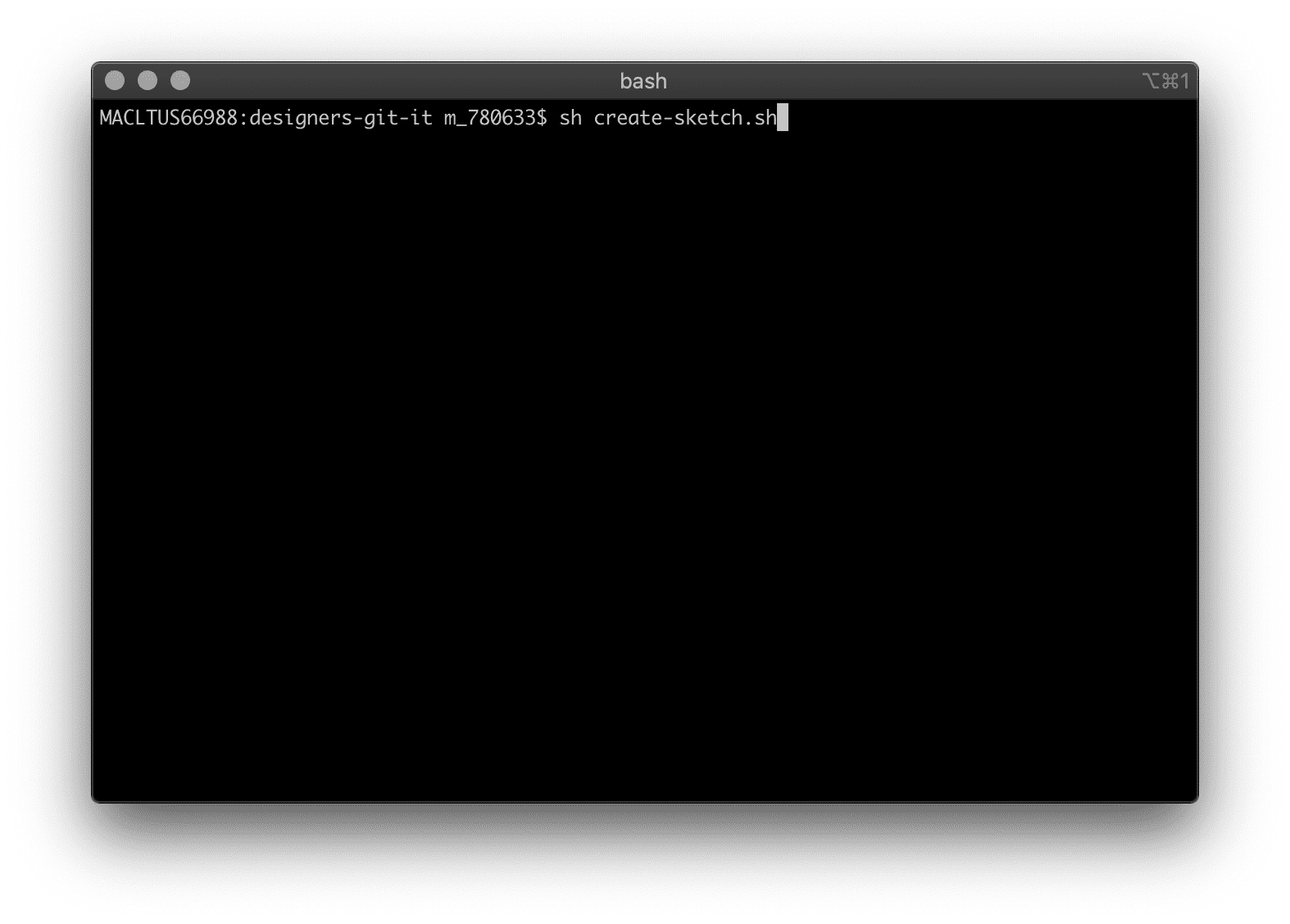

Much like the create-json.sh script create-sketch.sh creates your Sketch files that you can use to design with. Inside of Terminal cd the folder you have saved your bash scripts and sketch file. Type in sh create-json.sh script.

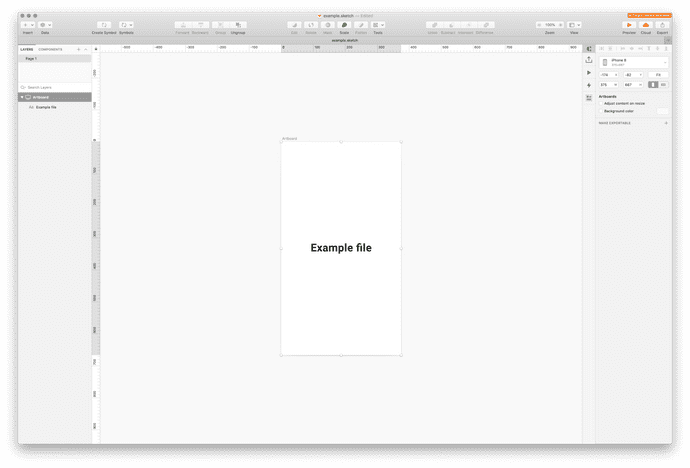

Open Sketch

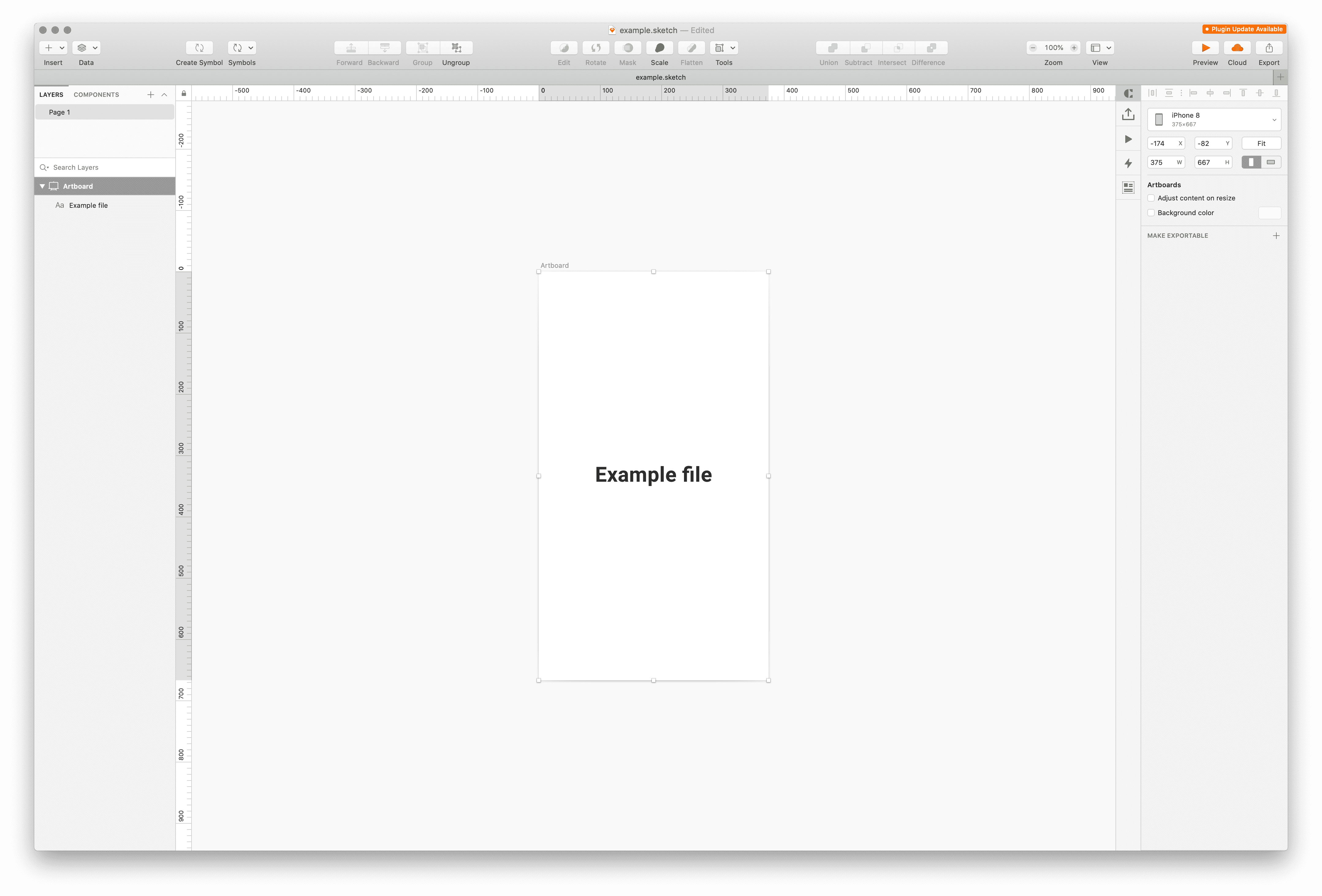

You can now open that Sketch file and make edits to your file.

Limitations

This is a great initial step for Version Control with deign files. The limitations that need to be solved are.

Ability to see difs between versions.
Manual process that most designers wont do.
Ability to pull assets or information from the json files straight into the code base.
